X-RAY Tube: New Product Annoucement
2025-09-02
High Hope Inc. is very proud to announce our newly developed X-ray tube —— XC 24.
Specifications:
|
P/N |
Nominal Voltage | Target Angle | Focal Spot | Anode Heat Storage Capacity | Max Anode Heat Dissipation Rate | Shielding |
| XC24 | 100 kv | 15 ° | 1.0 mm | 45 KHU's (31.5 kJ) | 19.4 KHU's / min | glass fiber/ lead |
Testing:
|
P/N |
High Voltage Test 1 | High Voltage Test 2 | Exposure Test |
| XC24 | 100 kV / 1 mA / 10 min | 110 kV / 1 mA / 15 min | 100 kV / 15 mA / 3 sec |
Outline:

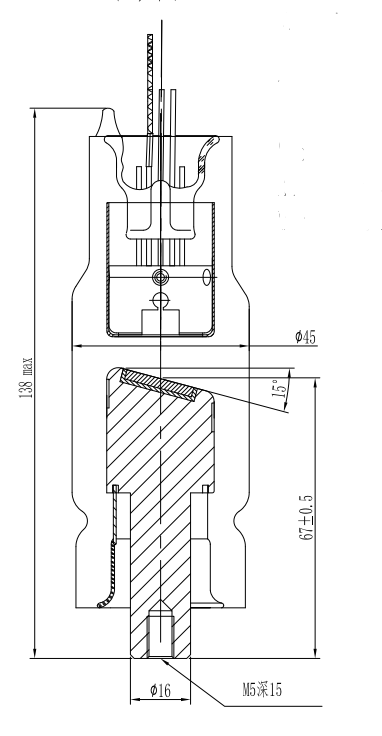

Without shielding (above)
With shielding (above)

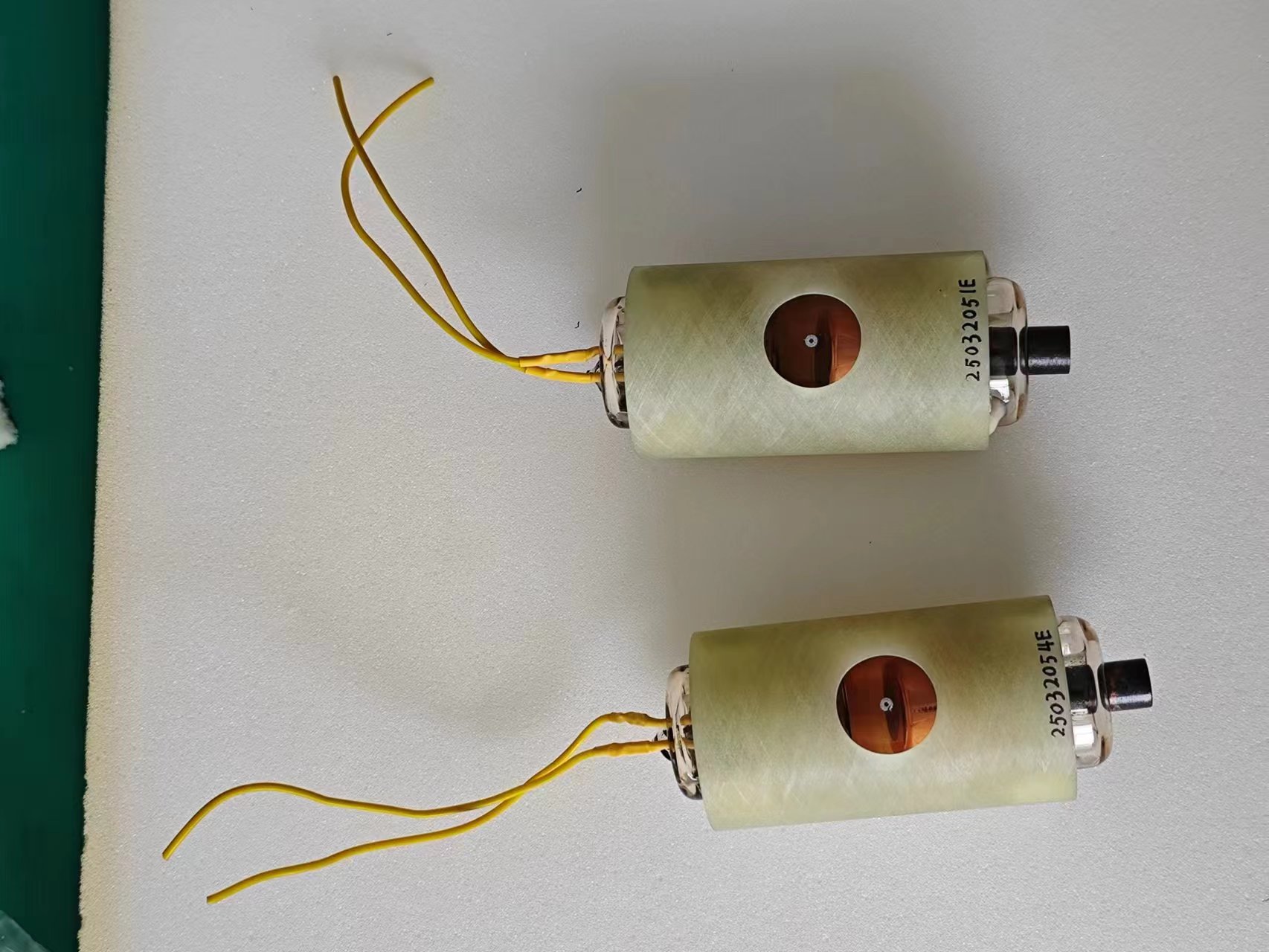

fiber glass: Φ 54

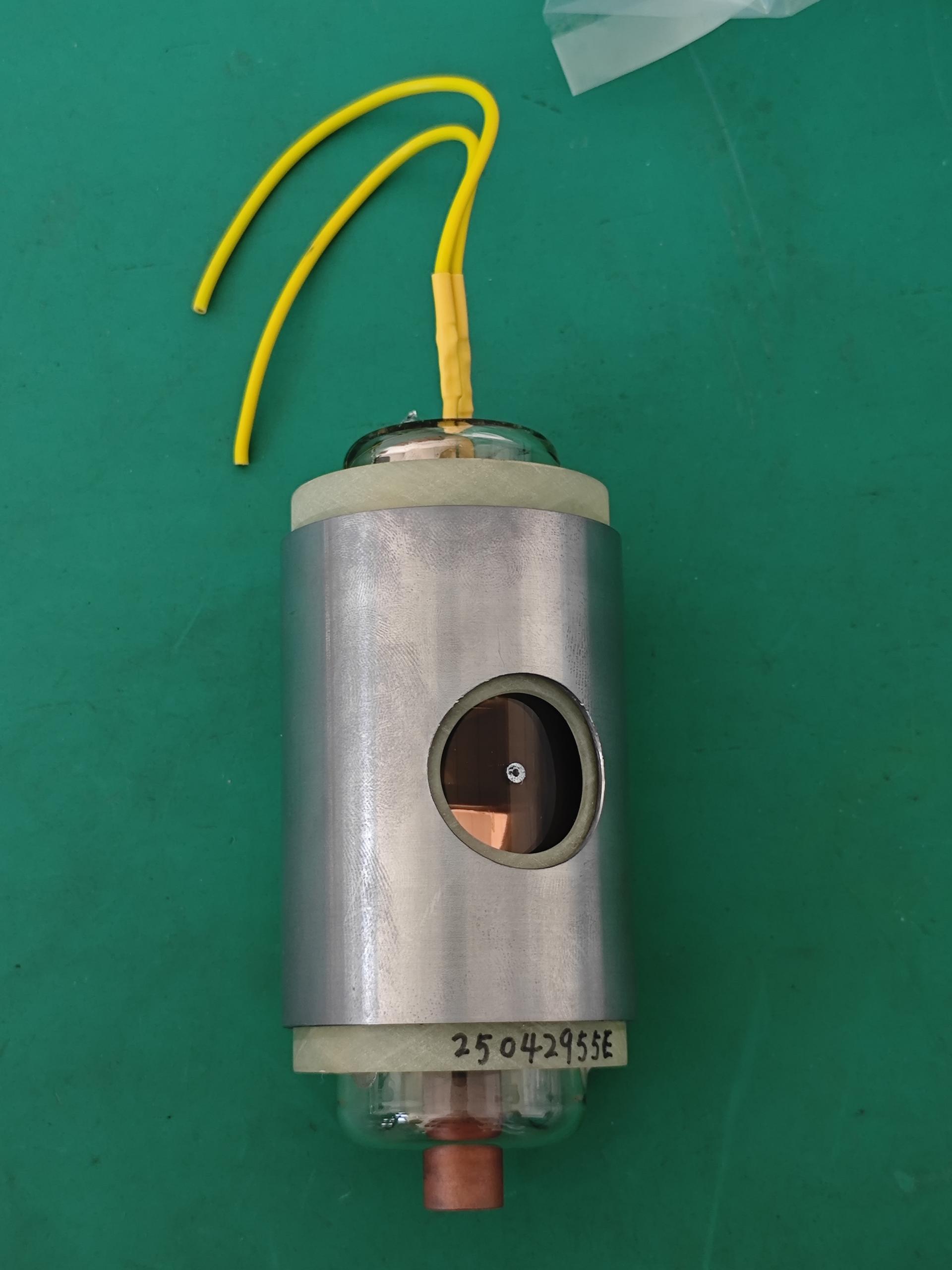

lead: Φ 58
