What Is a Fixed Vacuum Capacitor and Why Is It Essential for High-Performance RF Systems?

In high-frequency and high-voltage electronic applications, stability and reliability are non-negotiable. Engineers and buyers often struggle to find components that can withstand extreme electrical stress while maintaining consistent performance over time. This is where fixed vacuum capacitors stand out. Designed for demanding environments such as RF transmitters, plasma generators, and semiconductor equipment, these capacitors offer unmatched durability and efficiency.

Article Summary

This comprehensive guide explores fixed vacuum capacitors in depth, covering their working principles, advantages, applications, selection criteria, and common challenges faced by users. Whether you are an engineer, procurement manager, or system designer, this article will help you make informed decisions and optimize your system performance.

Table of Contents

• 1. What Is a Fixed Vacuum Capacitor?
• 2. How Does a Fixed Vacuum Capacitor Work?
• 3. Key Features and Advantages
• 4. Common Applications
• 5. Fixed vs Variable Vacuum Capacitors
• 6. How to Choose the Right Capacitor
• 7. Technical Specifications Explained
• 8. Common Customer Pain Points and Solutions
• 9. Installation and Maintenance Tips
• 10. Future Trends in Vacuum Capacitor Technology
• 11. FAQ

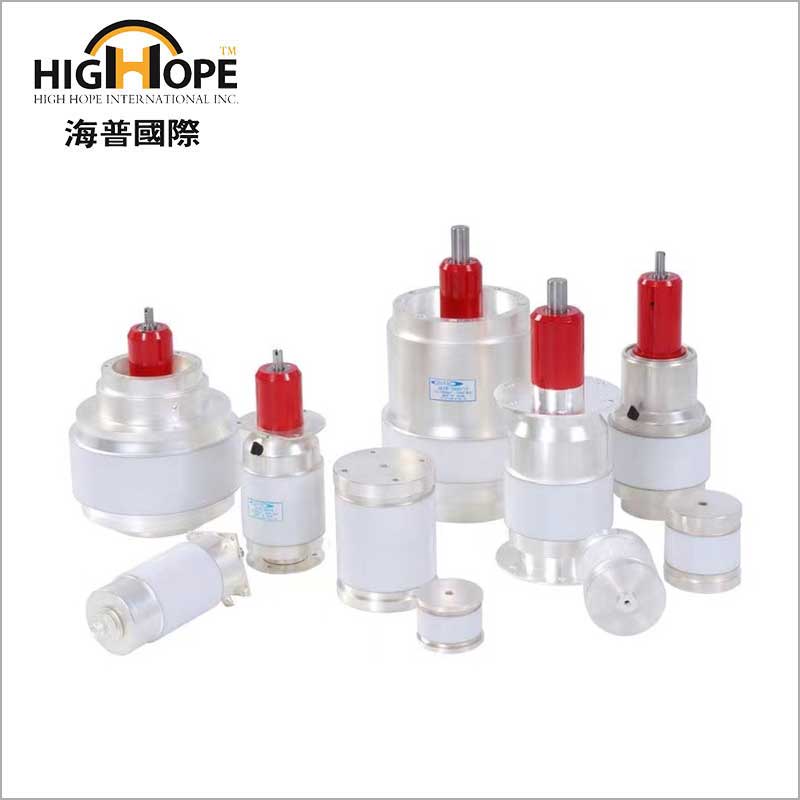

1. What Is a Fixed Vacuum Capacitor?

A fixed vacuum capacitor is a type of capacitor that uses a vacuum as the dielectric medium between its electrodes. Unlike traditional capacitors that rely on air, ceramic, or plastic materials, vacuum capacitors eliminate dielectric losses and provide superior insulation.

These capacitors are sealed in a vacuum-tight enclosure, typically made of glass or ceramic, ensuring long-term stability and resistance to environmental factors such as humidity and contamination.

2. How Does a Fixed Vacuum Capacitor Work?

The working principle is based on electrostatic energy storage. When voltage is applied across the electrodes, an electric field forms in the vacuum gap, storing energy without significant loss.

• No dielectric breakdown under high voltage
• Minimal energy loss due to absence of material dielectric
• Excellent thermal stability

3. Key Features and Advantages

4. Common Applications

Fixed vacuum capacitors are widely used in industries where precision and durability are critical.

• RF transmitters and broadcasting equipment
• Semiconductor manufacturing systems
• Medical devices such as MRI systems
• Plasma generation and industrial heating
• Particle accelerators

5. Fixed vs Variable Vacuum Capacitors

6. How to Choose the Right Capacitor

Selecting the right fixed vacuum capacitor requires careful evaluation of your system requirements.

• Operating voltage range
• Frequency requirements
• Capacitance value
• Thermal conditions
• Physical size constraints

A mismatch in any of these factors can lead to inefficiency or even system failure.

7. Technical Specifications Explained

8. Common Customer Pain Points and Solutions

Many users face challenges when integrating vacuum capacitors into their systems. Here are some common issues and solutions:

• Problem: Capacitor failure under high voltage
  Solution: Choose a higher-rated capacitor with safety margin
• Problem: Performance instability
  Solution: Use capacitors with low capacitance drift
• Problem: Space limitations
  Solution: Opt for compact high-density designs
• Problem: Overheating
  Solution: Ensure proper cooling and ventilation

9. Installation and Maintenance Tips

• Ensure clean and dust-free installation environment
• Avoid mechanical stress on terminals
• Monitor temperature during operation
• Perform periodic inspections

Proper installation significantly extends the lifespan of the capacitor.

10. Future Trends in Vacuum Capacitor Technology

The industry continues to evolve with advancements in materials and manufacturing techniques.

• Higher voltage ratings
• Miniaturization
• Improved thermal performance
• Integration with smart monitoring systems

11. FAQ

Q1: What makes vacuum capacitors better than ceramic capacitors?
A: Vacuum capacitors offer lower losses, higher voltage tolerance, and better stability.

Q2: Can fixed vacuum capacitors be repaired?
A: Generally no; they are sealed units and should be replaced if damaged.

Q3: How long do they last?
A: With proper usage, they can last for decades.

Q4: Are they suitable for high-frequency applications?
A: Yes, they are ideal for RF and high-frequency systems.

Q5: What industries use them the most?
A: Semiconductor, medical, broadcasting, and industrial processing industries.

Conclusion

Fixed vacuum capacitors are indispensable components in modern high-performance electronic systems. Their ability to handle extreme conditions while maintaining stable performance makes them a preferred choice for demanding applications.

If you are looking for reliable and high-quality solutions, High Hope International Inc offers a wide range of fixed vacuum capacitors tailored to meet your specific needs. Our team is ready to provide expert guidance and customized solutions to optimize your system performance.

Contact us today to explore how we can support your next project.
